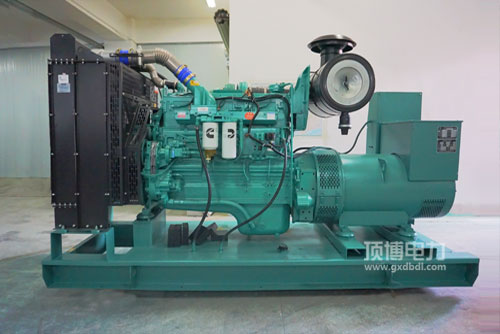

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用发起机汽柴油社会可持续性好: 最新的汽柴油调整平台，才有的STC、ESTC 分级a调整平台，异常规划的气缸顶上熔化室，进行高压输送汽柴油，完全的吸雾，熔化完全的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用热车机瞬态性优异的: 很好的热车机整体的结构设计，听取康明斯特别的EFC机系统，操作表面粗糙更高，反映时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用热车机升工作功率高: 纵向设置紧凑型.看上去场地布置合理安排，运动能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50够满足中国人非方向第三点时段.及中美洲Tier2. Tier 3进行排放标准让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可获得性好， 打火机执行及维修保养维修保养快速，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数的范围 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯电站用热车机的特殊性：重量小， 减小比低， 排水槽冷空气预热，不易初始化，转动汽车导航电源适配器的好选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机参数	较常用电机功率(kW)Prime Power	备用电源输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
